產片介紹：HT5943設備是一種高性能、低成本、單片機、立體聲模數轉換器，具有差分模擬電壓輸入。
┄┄┄詳細介紹┄┄┄
1.概述
The HT5943 device is a high-performance, low-cost, single-chip, stereo analog-to-digital converter with differential analog voltage input. Single end-ed analog input and PDM input is also supported. For various applications, the HT5943 device supports master and slave mode, and a variety of formats in serial audio interface, such as I2S, left justified, DSP/PCM and TDM.
The device is available in QFN3×3-20Lpackage。
2.特點
24Bit Delta-Sigma Stereo ADC
?Differential Voltage Input: ±VDDA/3.3Vrms
?Audio Performance
- THD+N: -88dB (Typical)
- SNR: 89dB (PGA=30dB);
106dB (PGA=0dB)
?Flexible PCM Audio Interface
- Master- or Slave-Mode
- Data Formats: 24Bit, 8-48kHz fs
- TDM up to 16 channels
?Automatic Level Control (ALC) and noise gate
?Digital mic (PDM) available
?QFN3×3-20LPackage
3.應用
APPLICATIONS ?
Mic Array
?Digital TV
?Audio Speaker
?Audio Interface
?CD Recorder
?Multitrack Receiver
?Electric Musical Instrument
4. 典型應用圖

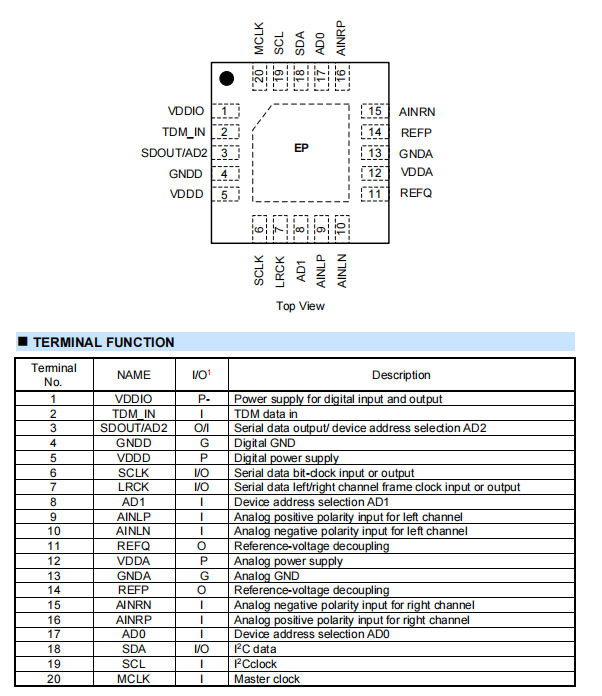

5. 引腳信息
