低噪聲運(yùn)算放大器

產(chǎn)品名稱：AXOP39061 25MHz RRIO Operational Amplifiers(Single)
型號： AXOP39061
產(chǎn)片介紹：Excellent THD+N 100dB Excellent SNR 110dB Rail-to-rail input and output Low input offset voltage: ±0 5mV typ Unity-gain bandwidth: 25MHz Low quiescent current: 800μA typ Operational at supply voltages as low as 1 5V Easier to stabilize with higher capacitive load due to resistive open-loop output impedance

┄┄┄詳細(xì)介紹┄┄┄

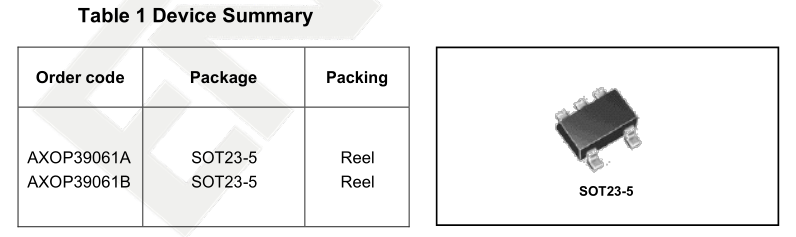

Description

The AXOP39061 is a single channel low voltage (1.5V to 5.5V) operational amplifiers (opamps) with rail.to-rail

input and output swing capabilities. These devices are very suitable for applications where lowvoltage operation,

a small footprint, and high capacitive load drive are required.

Features

? Excellent THD+N 100dB
? Excellent SNR 110dB
? Rail-to-rail input and output
? Low input offset voltage: +0.5mV typ
? Unity-gain bandwidth: 25MHz
? Low quiescent current: 800μA typ
? Operational at supply voltages as low as 1.5V

? Easier to stabilize with higher capacitive load due to resistive open-loop output impedance

Applications

? Infotainment system

? HVAC: heating, ventilating, and air conditioning
? Motor control
? Wearable devices
? Sensor signal conditioning
? Power modules
? Active filters

1 Block Diagram and Application Circuit

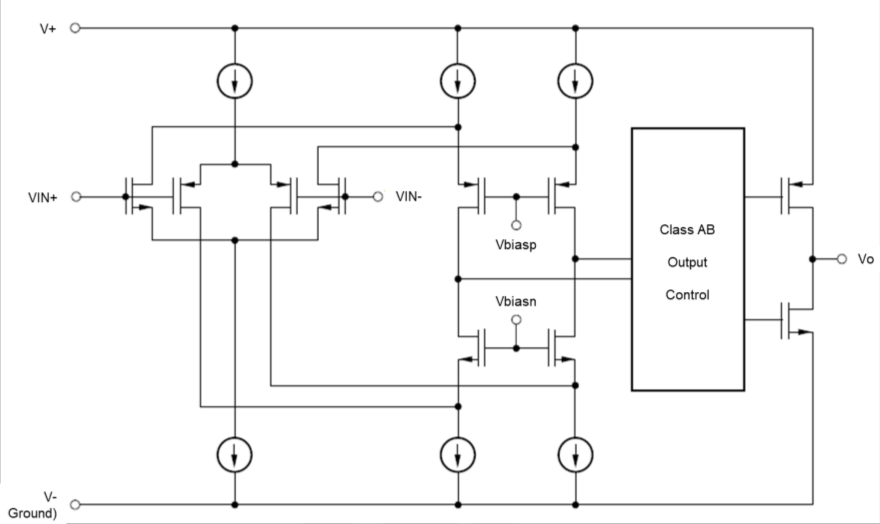

Figure 1 Block Diagram

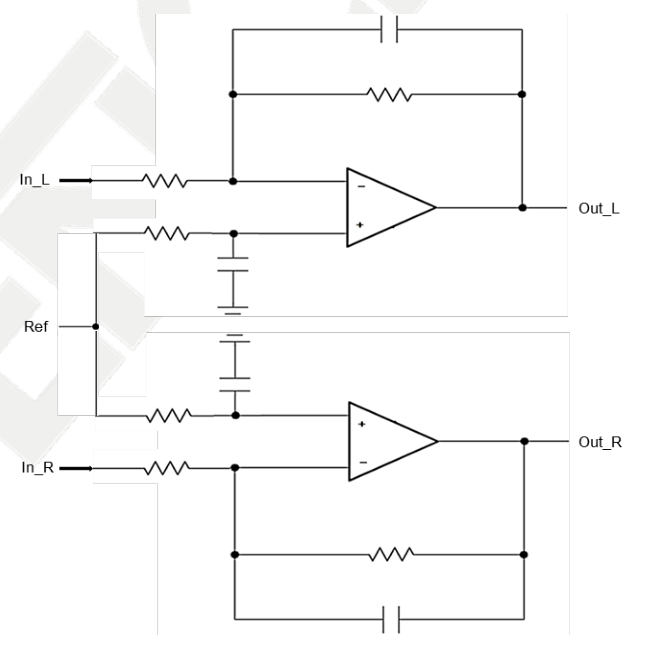

Figure 2 Typical Application Circuit (Stereo Sound Input Amplifier)

2 Pin Description

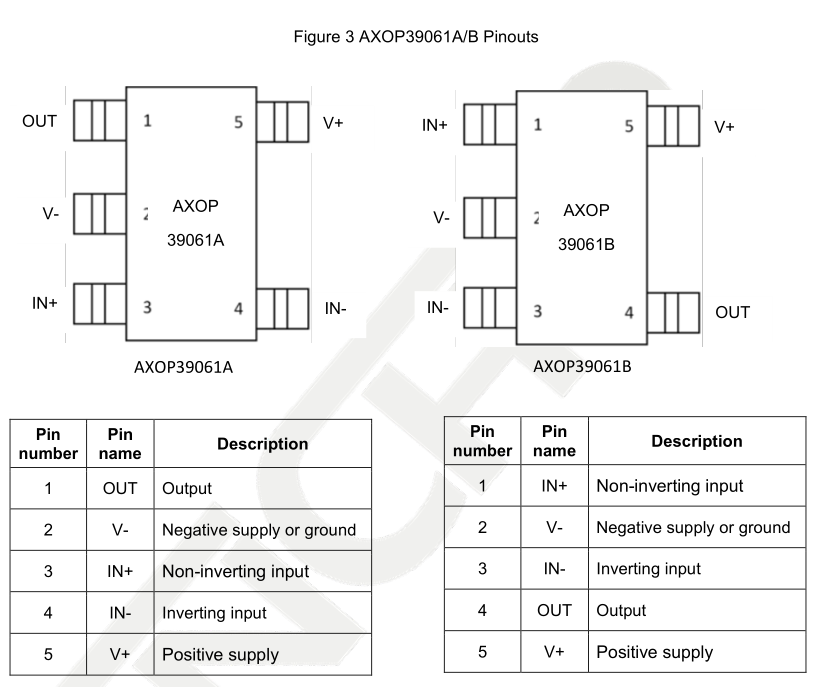

2.1 AXOP39061A/B Pinouts

3 Electrical Specifications

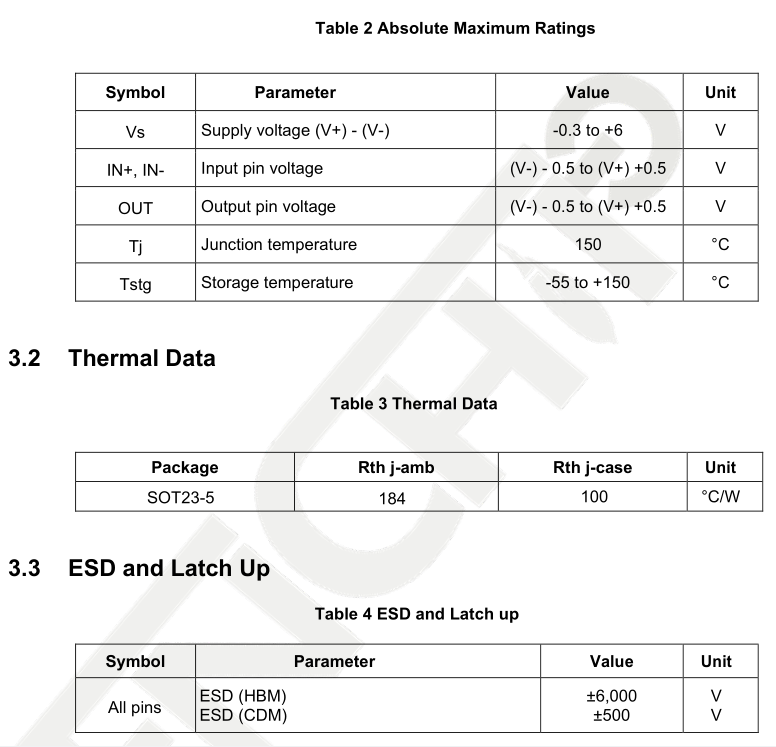

3.1 Absolute Maximum Ratings

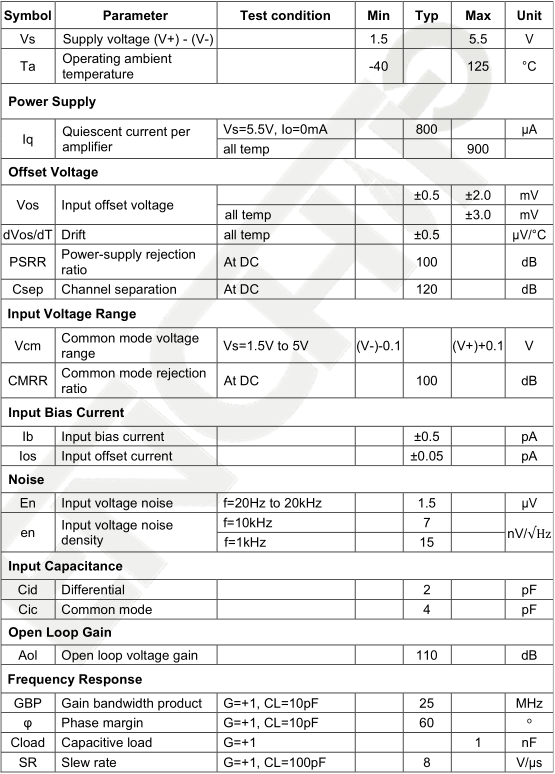

3.4 Electrical Characteristics
For Vs = (V+)- (V) = 5V at Ta = 25°C, RL = 10kΩ connected to Vs/2, Vcm = Vs/2, and Vout =Vs/2

(unless otherwise noted).

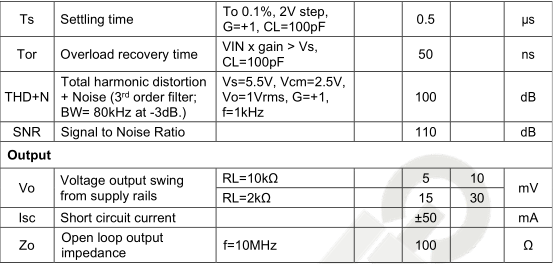

Table 5 Electrical Characteristics

4 Functional Description
4.1 Overview

The AXOP39061 device is a low power, rail-to-rail input and output opamp. The deviceoperates from

1.5V to 5.5V, is unity gain stable, and designed for a wide range of applications and used in virtually any

single supply application.

4.2 Rail to Rail input

The input common mode voltage range of the AXOP39061 extends 100mV beyond the supplyrails

for the full supply voltage range of 1.5V to 5.5V. This performance is achieved with acomplementary

input stage: a N-channel input differential pair in parallel with a P-channeldifferential pair, as shown

in Figure 1. The N-channel pair is active for input voltages close tothe positive rail, typically (V+)-1.4V

to 200mV above the positive supply, whereas the P.channel pair is active for inputs from 200mV below

the negative supply to approximately (V+)1.4V, There is a transition region, in which both pairs are on,

Within this transition region.PSRR, CMRR, offset voltage, offset drift, and THD can degrade compared

to device operationoutside this region.

4.3 Rail to Rail Output

Designed as a low power, low voltage operational amplifier, the AXOP39061 delivers a robustoutput drive

capability, A class AB output stage with common source Mosfets achieves full rail-.to-rail output swing

capability. For resistive loads of 10kQ, the output swings to within 10mV(typ)of either supply rail, regardless

of the applied power supply voltage. Different loadconditions change the ability of the amplifier to swing

close to the rails.

4.4 Overload Recovery

Overload recovery is defined as the time required for the opamp output to recover from asaturated state

to a linear state. The output devices of the opamp enter a saturation regionwhen the output voltage exceeds

the rated operating voltage, because of the high input voltageor the high gain. After the device enters the

saturation region, the charge carriers in the outputdevices require time to return to the linear state. After the

charge carriers return to the linealstate. the device begins to slew at the specified slew rate. The overload

recovery time for theAXOP39061 is approximately 300ns.

4.5 EMI Rejection

The AXOP3906x uses integrated electromagnetic interference (EMl) filtering to reduce theeffects of EMl from

sources such as wireless communications and densely populated boardswith a mix of analog signal chain and

digital components.
