低噪聲運算放大器

產品名稱：AXOP39062/4/S 25MHz RRlO Operational Amplifiers(Dual/Quad)
型號： AXOP39062/4/S
產片介紹：Excellent THD+N 100dB Excellent SNR 110dB Rail-to-rail input and output Low input offset voltage: +0 5mV typ Unity-gain bandwidth:25MHz Low quiescent current (per opamp): 400μA typ Operational at supply voltages as low as 1 5V Easier to stabilize with higher capacitive load due to resistive open-oop output impedance Shutdown function(AXOP39062S and AXOP39064S)

┄┄┄詳細介紹┄┄┄

Description

The AXOP39062 (dual), and AXOP39064 (quad) are dual and quad low voltage (1.5V to 5.5V)

operational amplifiers (opamps) with rail-to-rail input and output swing capabilities. These

devices are very suitable for applications where low voltage operation, a small footprint,

and high capacitive load drive are required. AXOP39062S and AXOP39064S are with Shutdown function.

Features

? Excellent THD+N 100dB

? Excellent SNR 110dB

? Rail-to-rail input and output

? Low input offset voltage: ±0.5mV typ

? Unity-gain bandwidth: 25MHz

? Low quiescent current (per opamp): 400µA typ

? Operational at supply voltages as low as 1.5V

? Easier to stabilize with higher capacitive load due to resistive open-loop output impedance

? Shutdown function (AXOP39062S and AXOP39064S)

Applications

? Infotainment system

? HVAC: heating, ventilating, and air conditioning

? Motor control

? Wearable devices

? Sensor signal conditioning

? Power modules

? Active filters

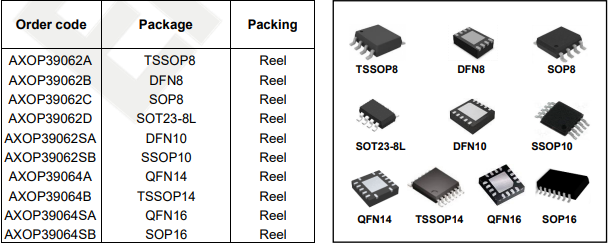

Table 1 Device Summary

1 Block Diagram and Application Circuit

Figure 1 Block Diagram

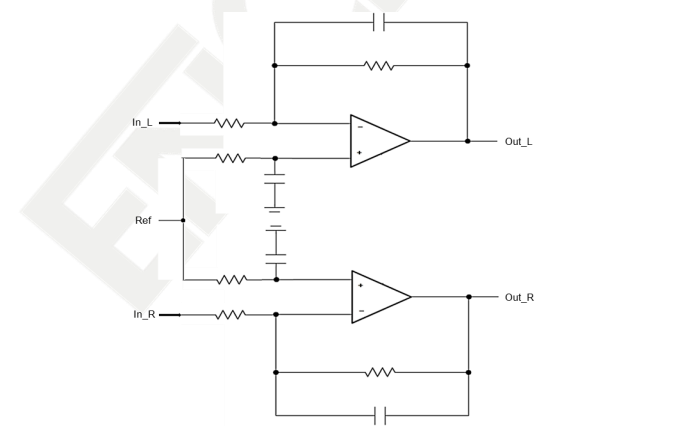

Figure 2 Typical Application Circuit (Stereo Sound Input Amplifier)

2 Pin Description

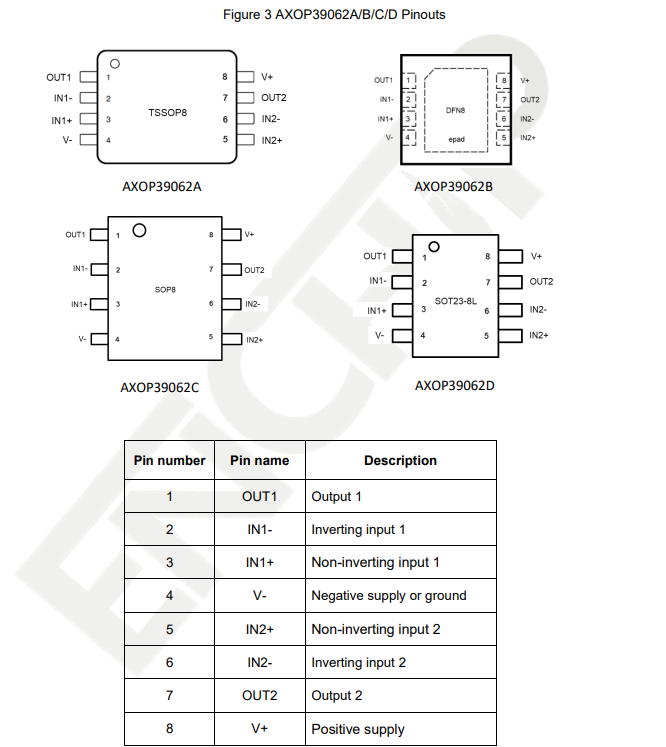

2.1 AXOP39062A/B/C/D Pinouts

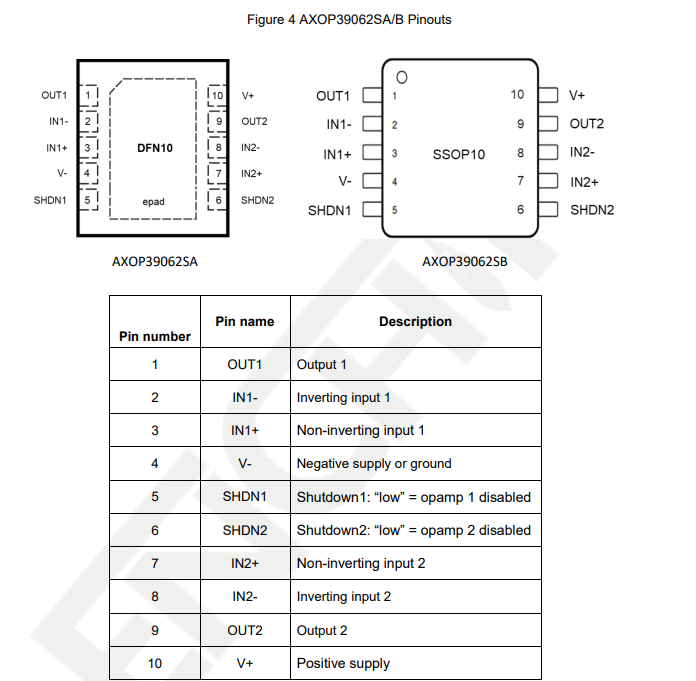

2.2 AXOP39062SA/B Pinouts

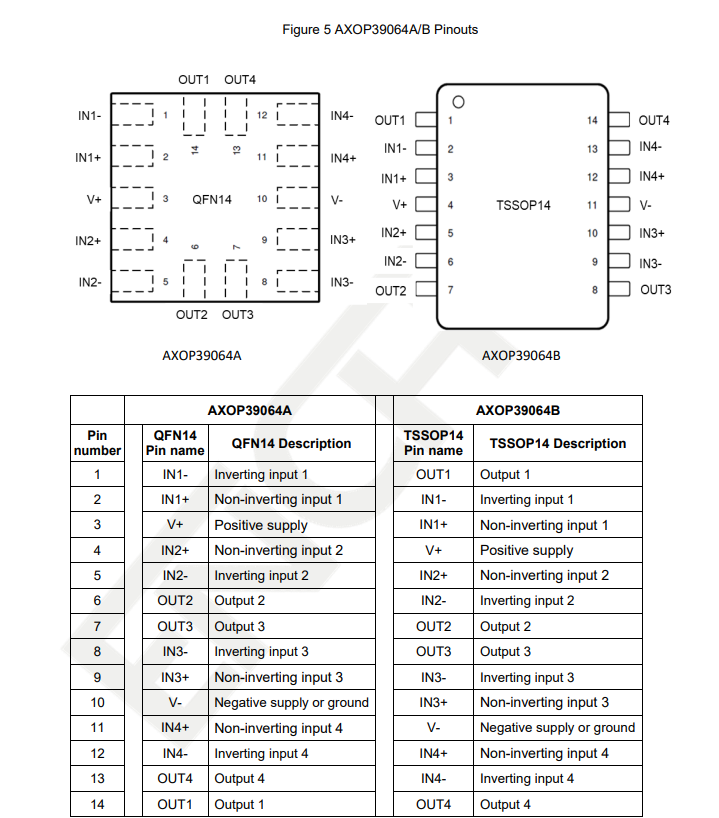

2.3 AXOP39064A/B Pinouts

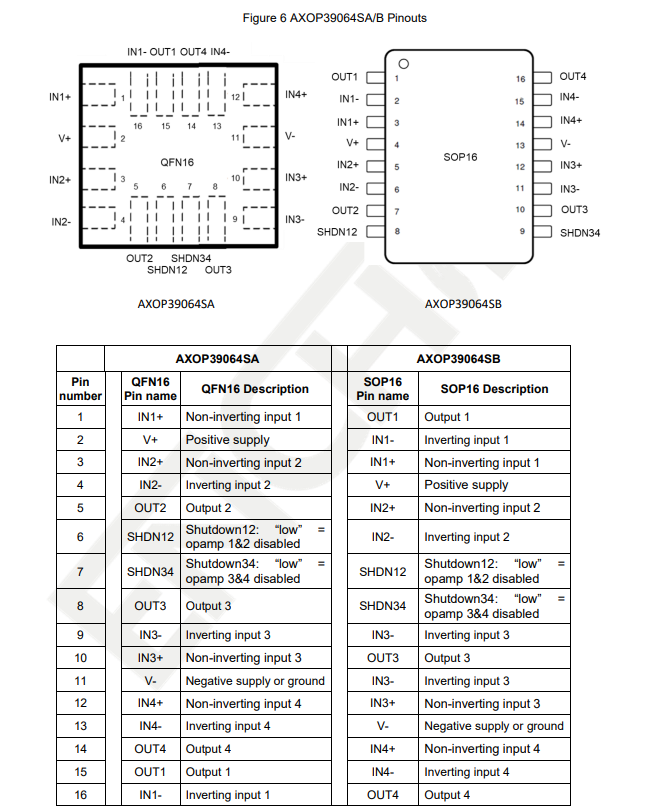

2.4 AXOP39064SA/B Pinouts

3 Electrical Specifications

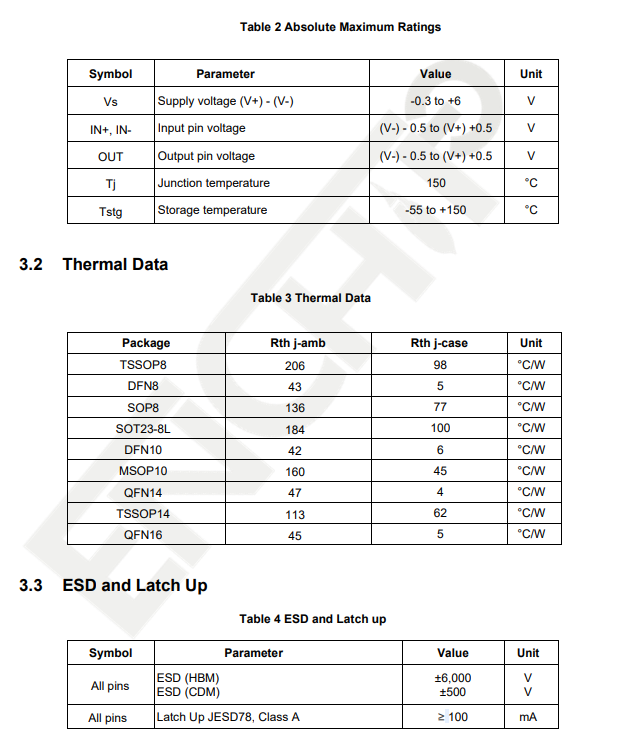

3.1 Absolute Maximum Ratings

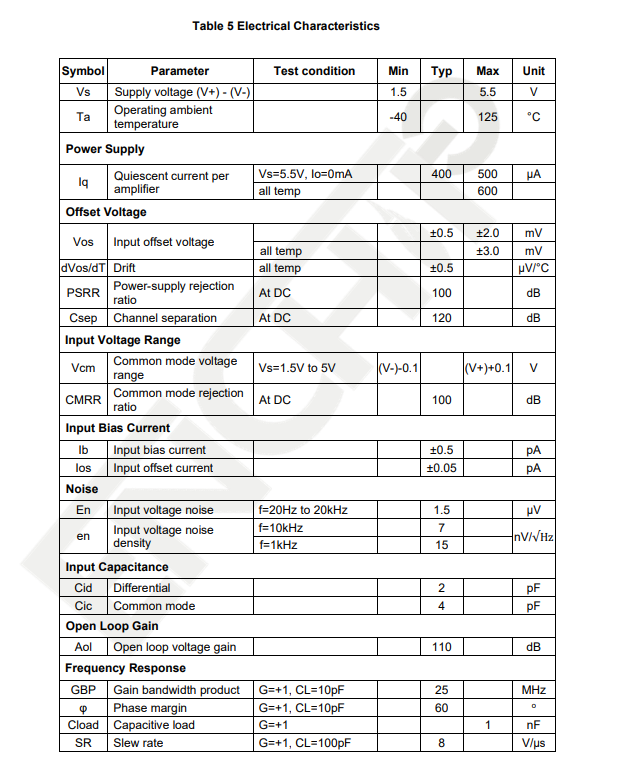

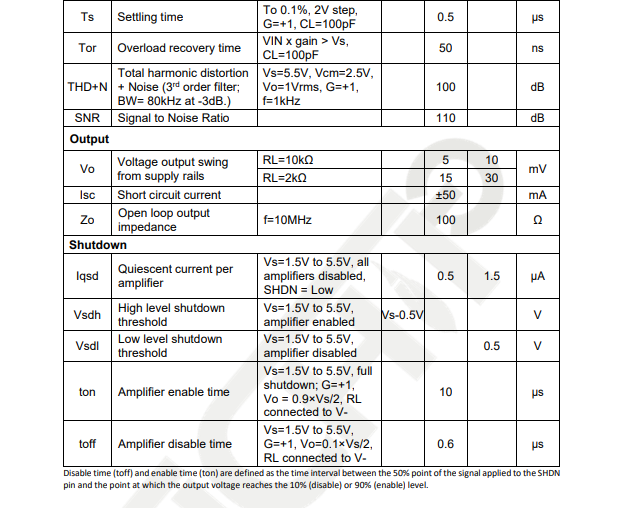

3.4 Electrical Characteristics

For Vs = (V+) - (V-) = 5V at Ta = 25°C, RL = 10kΩ connected to Vs/2, Vcm = Vs/2,

and Vout = Vs/2 (unless otherwise noted).

4 Functional Description

4.1 Overview
The AXOP3906x devices are a family of low power, rail-to-rail input and output opamps. These
devices operate from 1.5V to 5.5V, are unity gain stable, and are designed for a wide range of
applications and used in virtually any single supply application.

4.2 Rail to Rail Input

The input common mode voltage range of the AXOP3906x family extends 100mV beyond the

supply rails for the full supply voltage range of 1.5V to 5.5V. This performance is achieved with

a complementary input stage: a N-channel input differential pair in parallel with a P-channel

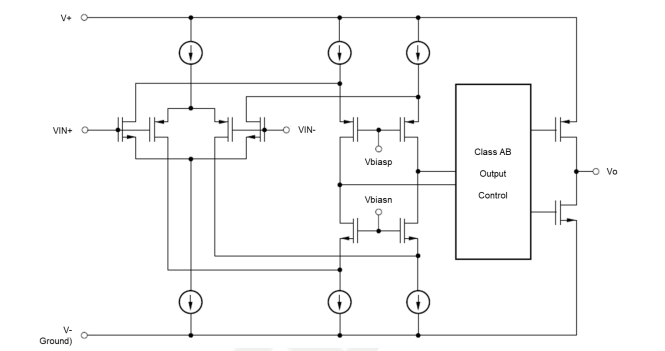

differential pair, as shown in Figure 1. The N-channel pair is active for input voltages close to

the positive rail, typically (V+)-1.4V to 200mV above the positive supply, whereas the P-channel

pair is active for inputs from 200mV below the negative supply to approximately (V+)- 1.4V.

There is a transition region, in which both pairs are on. Within this transition region, PSRR,

CMRR, offset voltage, offset drift, and THD can degrade compared to device operation outside

this region.

4.3 Rail to Rail Output

Designed as a low power, low voltage operational amplifier, the AXOP3906x series delivers a

robust output drive capability. A class AB output stage with common source Mosfets achieves

full rail-to-rail output swing capability. For resistive loads of 10kΩ, the output swings to within

10mV (typ) of either supply rail, regardless of the applied power supply voltage. Different load

conditions change the ability of the amplifier to swing close to the rails.

4.4 Overload Recovery

Overload recovery is defined as the time required for the opamp output to recover from a

saturated state to a linear state. The output devices of the opamp enter a saturation region

when the output voltage exceeds the rated operating voltage, because of the high input

voltage or the high gain. After the device enters the saturation region, the charge carriers

in the output devices require time to return to the linear state. After the charge carriers

return to the linear state, the device begins to slew at the specified slew rate. The overload

recovery time for the AXOP3906x family is approximately 300ns.

4.5 EMI Rejection

The AXOP3906x uses integrated electromagnetic interference (EMI) filtering to reduce

the effects of EMI from sources such as wireless communications and densely populated

boards with a mix of analog signal chain and digital components.

4.6 Shutdown

The AXOP3906xS has shutdown function. The amplifiers can be shut down by enabling

the respective shutdown pin.
